GP126

Model Details

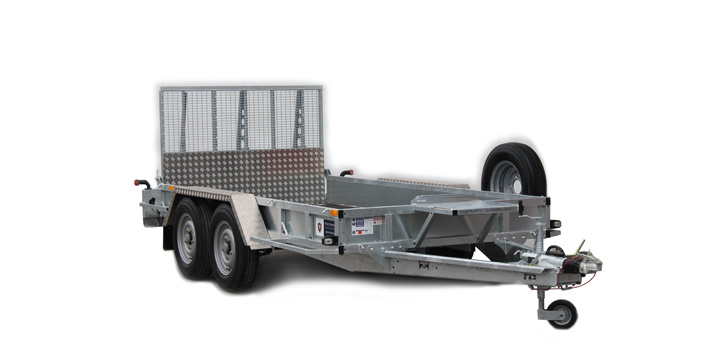

Sean Hogan Trailers presents the Ifor Williams GP126 general plant trailer for sale in Galway. The GP126 is a large plant trailer with an overall length of 5.85 meters and extra width of 2.3meters. It is an ideal workhorse trailer for transporting plant machinery with loads up to a maximum of 3500 kg in weight. The GP series trailers are widely regarded as the toughest plant trailers in the industry and come with an open rectangular steel framework, integral with the chassis.

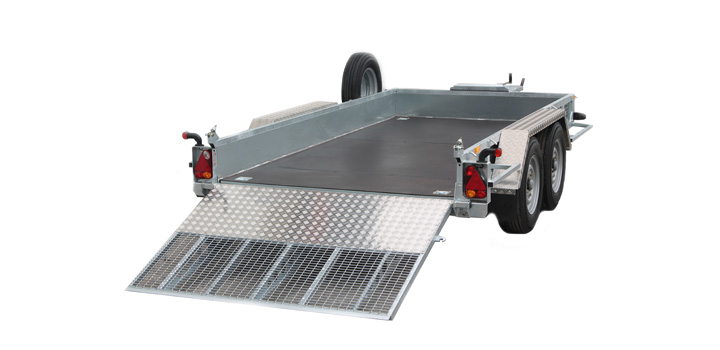

GP models are fitted with a strong resin-coated plywood platform. A number of options are available including factory fitted aluminium treadplate floor covering, bolt on ramp knife edge and 1.8m/6’ skids or ramp in place of the standard size of 1.2m/4’. The Ifor Williams GP models are fitted with integrated ramp or skid supports. This standard feature ensures trailers are supported whilst being loaded without the need to deploy prop stands.

Specification

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
GP106 Skids 155/70R12C 3500kg 705kg 3.06m/10′ 1.78m/5’10” 5.25m 2.30m
GP106 Ramp 155/70R12C 3500kg 720kg 3.06m/10′ 1.78m/5’10” 5.25m 2.30m
GP126 Skids 155/70R12C 3500kg 780kg 3.66m/12′ 1.78m/5’10” 5.85m 2.30m
GP126 Ramp 155/70R12C 3500kg 795kg 3.66m/12′ 1.78m/5’10” 5.85m 2.30m
GP126 Skids Tri Axle 155/70R12C 3500kg 890kg 3.66m/12′ 1.78m/5’10” 5.85m 2.30m
GP126 Ramp Tri Axle 155/70R12C 3500kg 905kg 3.66m/12′ 1.78m/5’10” 5.85m 2.30m
GP146 Skids Tri Axle 155/70R12C 3500kg 915kg 4.28m/14′ 1.78m/5’10” 6.40m 2.30m
GP146 Ramp Tri Axle 155/70R12C 3500kg 930kg 4.28m/14′ 1.78m/5’10” 6.47m 2.30m
