GH94
Model Details

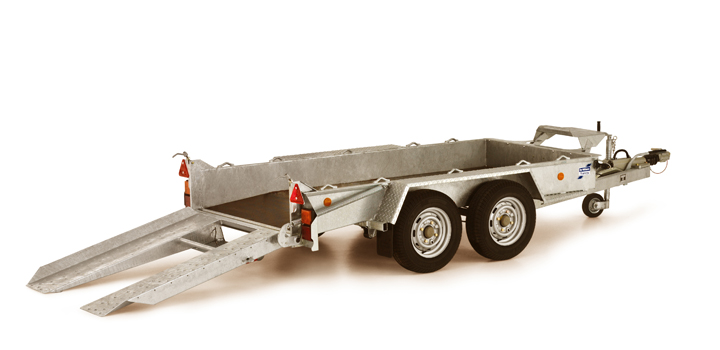

Sean Hogan Trailers presents the Ifor Williams GH94 general plant trailers for sale in Galway. The GH94 dual axle plant trailer provides an excellent payload of 2200kg and is ideal for users that have a restricted towing capacity on their vehicle. The GH94 is offered with two tyre options (10″ & 13″). Models fitted with larger tyres are manufactured to a beavertail specification to retain the low loading angle of 13°.
The Ifor Williams GH94 model is constructed with galvanized welded construction and leaf spring suspension ensuring they will withstand tough conditions. A thick resin coated plywood platform (24mm) makes this trailer particularly suitable for carrying rollers as well as excavators.
The additional length of the trailer provides extra loading space behind the rear axle, which better suits machines with a more central centre of gravity, such as the increasingly popular range of one tonne hi-tip dumpers. The length provides more space for carrying excavator buckets and caters for excavators with longer dipper arms.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| GH64 | 195/55R10C | 1500kg | 270kg | 1.88m/6’1″ | 1.23m/4′ | ||
| GH94 | 195/55R10C | 2700kg | 500kg | 2.79m/9’1″ | 1.31m/4’3″ | ||
| GH94BT | 165R13C | 2700kg | 530kg | 2.79m/9’1″ | 1.31m/4’3″ | ||
| GH1054 | 185/70R13C | 3500kg | 660kg | 3.04m/9’11” | 1.62m/5’4″ |
