BV84
Model Details

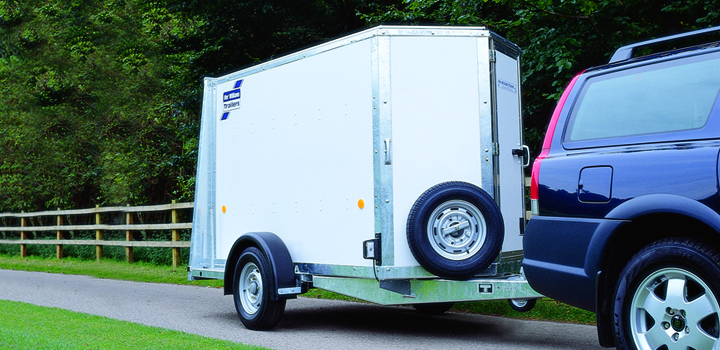

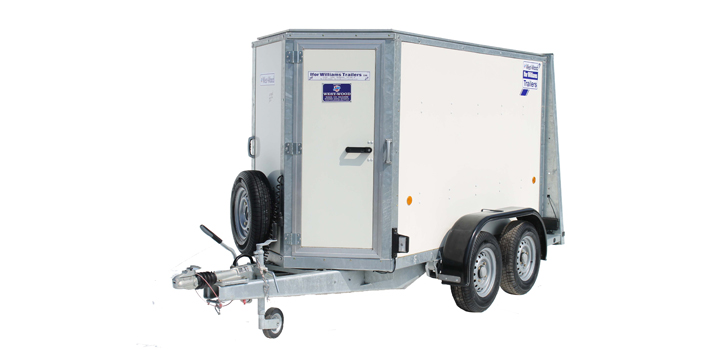

Sean Hogan Trailers presents the Ifor Williams BV84 box van trailer for sale in Galway. The BV84 box van has an overall length of 3.9 meters and a width of 1.8 meters. The white coated side panels are tough, smart and easy to clean. They provide the classic ‘blank canvas’ ready to be sign-written upon and ideal for pre-cut vinyl graphics and logos. The Ifor Williams braked models of box vans come with cargo rails fitted as standard.

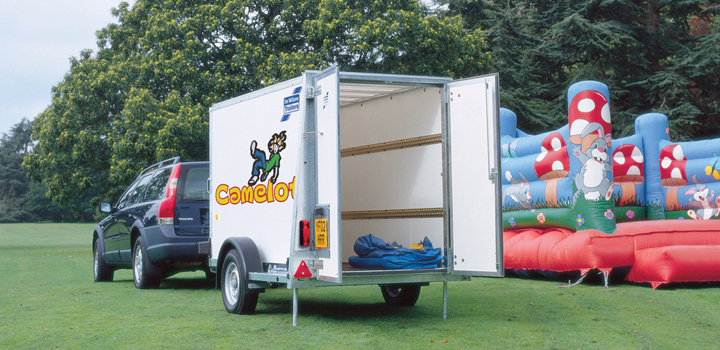

Also available are optional shoring poles and cargo straps meaning the load can be securely restrained while transporting. Additional restraint can be provided with extra lashing points, offered as an extra option. All Ifor Williams braked box vans feature a lockable front access door for convenient access to the load. The galvanized steel chassis, roof frame and drawbars offer unbeatable corrosion protection.
Specification
Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
---|---|---|---|---|---|---|---|
BV84 Single Axle | 165R13C | 1400kg | 515kg | 2.40m | 1.17m | 3.90m | 1.80m |
BV84 | 165R13C | 2700kg | 605kg | 2.40m | 1.17m | 3.90m | 1.80m |
BV85 5′ H/R | 165R13C | 2700kg | 640kg | 2.40m | 1.47m | 4.10m | 2.10m |
BV85 5′ H/R Single Axle | 165R13C | 1400kg | 550kg | 2.40m | 1.47m | 4.10m | 2.10m |
BV85 6′ H/R | 165R13C | 2700kg | 675kg | 2.40m | 1.47m | 4.10m | 2.10m |
BV85 6′ H/R Single Axle | 165R13C | 1400kg | 585kg | 2.40m | 1.47m | 4.10m | 2.10m |
BV85 7′ H/R | 165R13C | 2700kg | 770kg | 2.40m | 1.47m | 4.10m | 2.10m |
BV85 7′ H/R Single Axle | 165R13C | 1400kg | 620kg | 2.40m | 1.47m | 4.10m | 2.10m |
BV105 5′ H/R | 165R13C | 2700kg | 705kg | 3.00m | 1.47m | 4.70m | 2.10m |
BV105 6′ H/R | 165R13C | 2700kg | 735kg | 3.00m | 1.47m | 4.70m | 2.10m |
BV105 7′ H/R | 165R13C | 2700kg | 770kg | 3.00m | 1.47m | 4.10m | 2.10m |
BV125 6′ H/R | 165R13C | 2700kg | 800kg | 3.60m | 1.47m | 5.30m | 2.10m |
BV125 7′ H/R | 165R13C | 2700kg | 850kg | 3.60m | 1.47m | 5.30m | 2.10m |
BV106 6′ H/R | 155/70R12C | 3500kg | 900kg | 3.00m | 1.73m | 4.70m | 2.30m |
BV106 7′ H/R | 155/70R12C | 3500kg | 935kg | 3.00m | 1.73m | 4.70m | 2.30m |
BV126 6′ H/R | 155/70R12C | 3500kg | 980kg | 3.60m | 1.73m | 5.35m | 2.30m |
BV126 7′ H/R | 155/70R12C | 3500kg | 1030kg | 3.60m | 1.73m | 5.35m | 2.30m |
